  • #1

    Toyota 89170-ODG40

    CAR BRAND NAME: TOYOTA
    MODEL: YARIS CROSS
    PART NUMBER:89170-0DG40
    CPU / EEPROM: R7F7016843

    I have a question: is there a chance to add this number 89170-0DG40?



    Turn on 3/5V on the adapter... ok
    CANFD Adapter Connect... ok
    CANFD Adapter FW version... v1.4
    Checking security... ok
    DC power supply voltage +15,1V
    Turn on 12V on the adapter... ok
    Connect to CANFD Adapter... ok
    Enter Diagnostic Session... ok
    Read Part Number... 89170-0DG40
    Read SW Number... 8917F0DB20
    Read Errors...
    B0001:13-AB - DRIVER FRONTAL STAGE 1 DEPLOYMENT CONTROL (Circuit Open)
    B0010:13-AB - PASSENGER FRONTAL STAGE 1 DEPLOYMENT CONTROL (Circuit Open)
    B0020:13-AB - LEFT SIDE AIRBAG DEPLOYMENT CONTROL (Circuit Open)
    B0021:13-AB - LEFT CURTAIN DEPLOYMENT CONTROL 1 (Circuit Open)
    B0028:13-AB - RIGHT SIDE AIRBAG DEPLOYMENT CONTROL (Circuit Open)
    B0029:13-AB - RIGHT CURTAIN DEPLOYMENT CONTROL 1 (Circuit Open)
    B0070:13-AB - DRIVER SEATBELT PRETENSIONER DEPLOYMENT CONTROL (Circuit Open)
    B0072:13-AB - PASSENGER SEATBELT PRETENSIONER A DEPLOYMENT CONTROL (Circuit Open)
    B0073:13-AB - SECOND ROW LEFT SEATBELT PRETENSIONER DEPLOYMENT CONTROL (Circuit Open)
    B0075:13-AB - SECOND ROW RIGHT SEATBELT PRETENSIONER DEPLOYMENT CONTROL (Circuit Open)
    B0075:1A-68 - (history) SECOND ROW RIGHT SEATBELT PRETENSIONER DEPLOYMENT CONTROL (Circuit Resistance Below Threshold)
    B0090:87-AB - LEFT FRONTAL RESTRAINTS SENSOR (Missing messages)
    B0092:87-AB - LEFT SIDE RESTRAINTS SENSOR 2 (Missing messages)
    B0095:87-AB - RIGHT FRONTAL RESTRAINTS SENSOR (Missing messages)
    B0097:87-AB - RIGHT SIDE RESTRAINTS SENSOR 2 (Missing messages)
    B009B:87-AB - LEFT SIDE RESTRAINTS SENSOR 5 (Missing messages)
    B009E:87-AB - RIGHT SIDE RESTRAINTS SENSOR 5 (Missing messages)
    B00D2:14-AB - RESTRAINT SYSTEM MALFUNCTION INDICATOR 1 (Circuit Short To Ground or Open)
    B00D5:14-AB - RESTRAINT SYSTEM PASSENGER DISABLE INDICATOR (Circuit Short To Ground or Open)
    B00DF:13-AB - PASSENGER RESTRAINTS DISABLE SWITCH (Circuit Open)
    B18D0:13-AB - Unknown Error (Circuit Open)
    B18D5:13-AB - Unknown Error (Circuit Open)
    P05BB:00-AB - !!! CRASH EVENT STORAGE FULL AND LOCKED !!!
    U023A:87-AB - LOST COMMUNICATION WITH FRONT CAMERA MODULE (Missing messages)
    Tags: None
  • #2
    Select part number 89170-0DG70 in AirbagCANServiceTool, everything should work.

    Comment

    • #3
      When I choose 89170-0DG70

      Turn on 3/5V on the adapter... ok
      CANFD Adapter Connect... ok
      CANFD Adapter FW version... v1.4
      Checking security... ok
      DC power supply voltage +15,1V
      Turn on 12V on the adapter... ok
      Connect to CANFD Adapter... ok
      Enter Diagnostic Session... ok
      Read Part Number... 89170-0DG40
      Read SW Number... 8917F0DB20
      Enter Diagnostic Session... ok
      Get Seed... failed

      Comment

      • #4
        What is the MCU inside?
        Try part number 89170-0C690.

        Comment

        • #5
          cpu 16843 1TC2346 ALAK 0097C
          controller SC900734AF

          Comment

          • #6
            Try to use part number 89170-0C690.

            Comment

            • #7
              When I choose 89170-0C690


              Turn on 3/5V on the adapter... ok
              CANFD Adapter Connect... ok
              CANFD Adapter FW version... v1.4
              Checking security... ok
              DC power supply voltage +15,07V
              Turn on 12V on the adapter... ok
              Connect to CANFD Adapter... ok
              Enter Diagnostic Session... ok
              Read Part Number... 89170-0DG40
              Read SW Number... 8917F0DB2000 8AA110D04100
              Enter Diagnostic Session... ok
              Get Seed... ok
              Enter Password... ok
              Load Bootloader... ok
              Enter Bootloader... ok
              Creating backup "Toyota 89170-0C690 R7F701644 14.11.2024 16.33.41.bin" ok
              Reading DataFlash... failed at address 00000000
              Something went wrong, please try again.

              Comment

              • #8
                It's good, try again.

                Comment

                • #9
                  I tried three times
                  Reading DataFlash... failed at address 00000000

                  Comment

                  • #10
                    You should connect it using SmartProg adapter, part number 89170-0DG20 (by SmartProg).

                    Comment

                    • #11

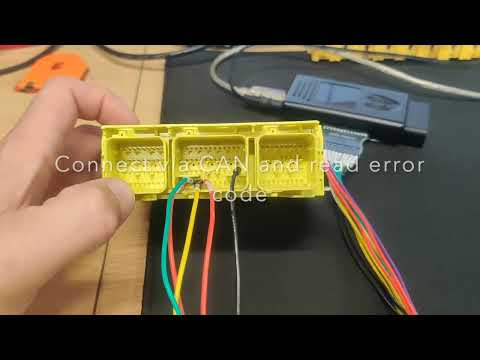

                      video step by step on subaru module, but idea same.
                      diagcar.eu

                      • 1 like

                      Comment

                      • #12
                        Hello

                        When I have the smart prog i will let you

                        Thank you

                        Comment

                        • #13
                          Hi all
                          I tried to do it ( 89170-0dg40) by smart prog and have issue with reading
                          please any one have file for this control so I can write it

                          Comment

                          • #14
                            What is the issue? Take a photo of your connection.

                            Comment

                            • #15
                              The connection is fine and reading ... first time unlock the mcu take long time .. 2nd time complete the reading but no file shown and no message error ...
                              I can't connect by obd to read the faults
                              will add pictures later

                              Comment
